FJC-Z2318 Swing Gate
FJC-Z2318
The FJC-Z2318 Swing Gate features a simple and sturdy exterior design, ensuring stable and efficient core operation. Equipped with seven pairs of high-density distributed photoelectric sensors, combined with cutting-edge electronic control technology and detection algorithms, it effectively ensures safe passage. Widely utilized in indoor and outdoor environments such as communities, parks, and campuses, this gate plays a key role in regulating and controlling pedestrian flow. It provides intelligent access management services.

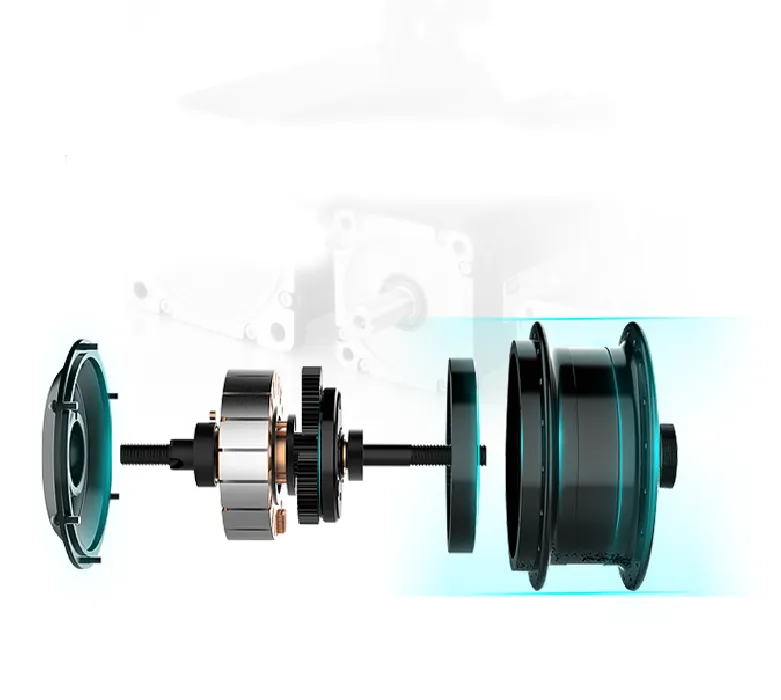

Precision Motor Drive
Brushless DC motor, integrated core design, robust structure, combined with intelligent numerical control technology, ensures powerful power output and long-term stable operation

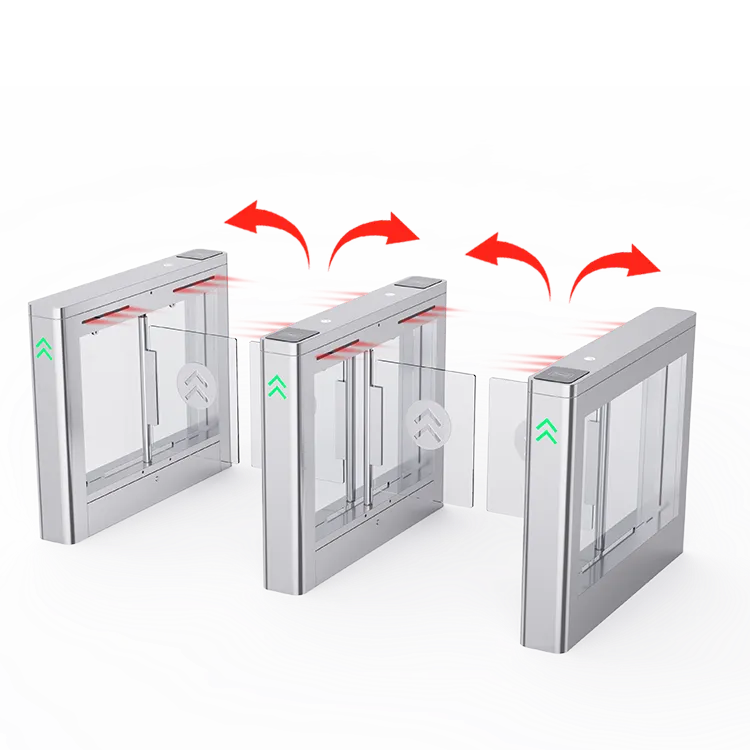

Multiple Safety Protections
High-density photoelectric detection, zone detection + fuzzy algorithm, triple anti-pinch technology incorporating infrared, mechanical, and current sensing, maximally ensuring passage safety.

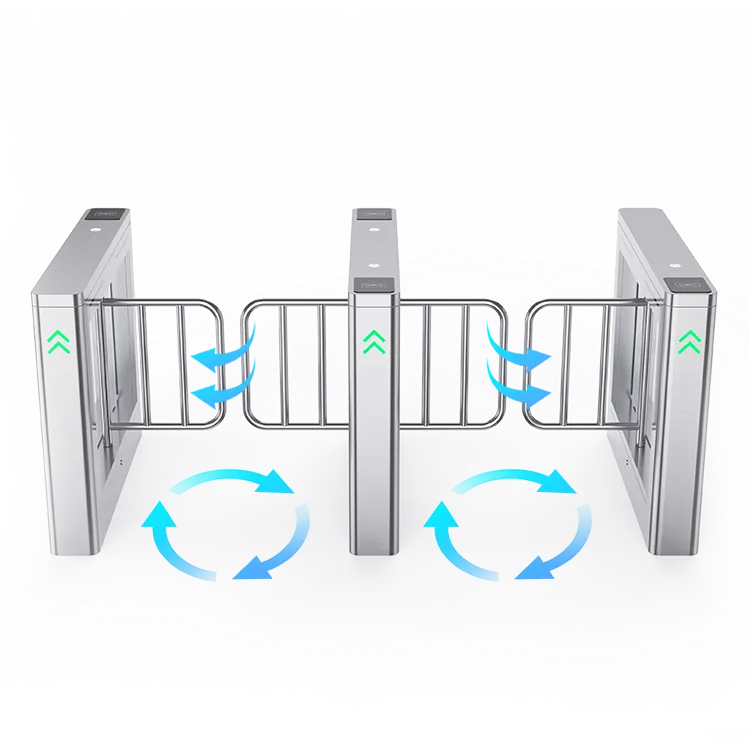

Collision Automatic Reset
Damage-free core structure, designed with collision automatic reset for enduring frequent and forceful impacts, preventing mechanical damage from accidental collisions, and reducing

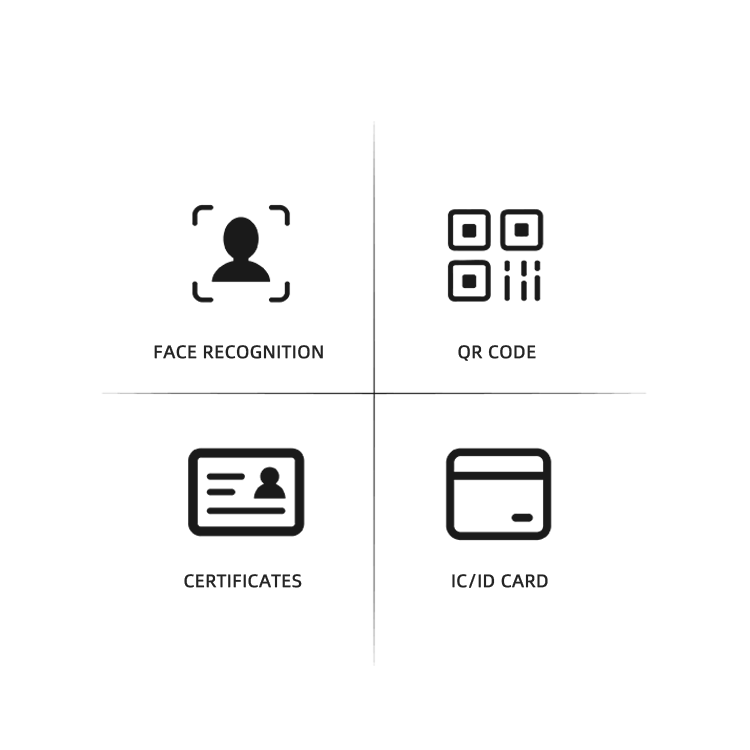

Diverse Access Authentication Methods
It can be extended to include intelligent devices such as facial recognition, ID card, RFID reader, QR code scanner, and more, enabling a diversified range of access authorization methods.
Specifications
| Parameter | FJC-Z2318 |
|---|---|
| Product Model | FJC-Z2318 |
| Body & Side Frame Material | 304 stainless steel |
| Gate Material | Stainless steel or acrylic |
| Top Cover Material | 304 stainless steel |
| Color | Stainless steel original color |
| Dimension (L*W*H) | 1,200*180*980mm |
| Lane Width | 600/700/800/900mm |
| Gate Interception Height | 782mm |
| Gate Height From The Ground | 245mm |
| Motor | DC brushless motor |
| Power Supply | AC 220V/110V±10%, 50/60Hz |
| Device Power | Total power: 100W, motor power: 40W |
| Passing Speed | Normally closed: 20 persons/minute Normally opened: 40 persons/minute |
| Open-closing Speed | 0.5s-1.5s adjustable |
| Detection Method | Photoelectric switch |
| Number of Electric Eyes | 7 Pairs |
| Communication Interface | Serial port and multi-channel I/O interface |
| Communication | RS485 and TCP/IP |
| Noise | ≤65dB |
| Working Temperature | -25℃ to +70℃ |
| Working Humidity | ≤90%, no condensation |
| Protection Class | IP54 |
| Working Environment | Indoor and outdoor |
