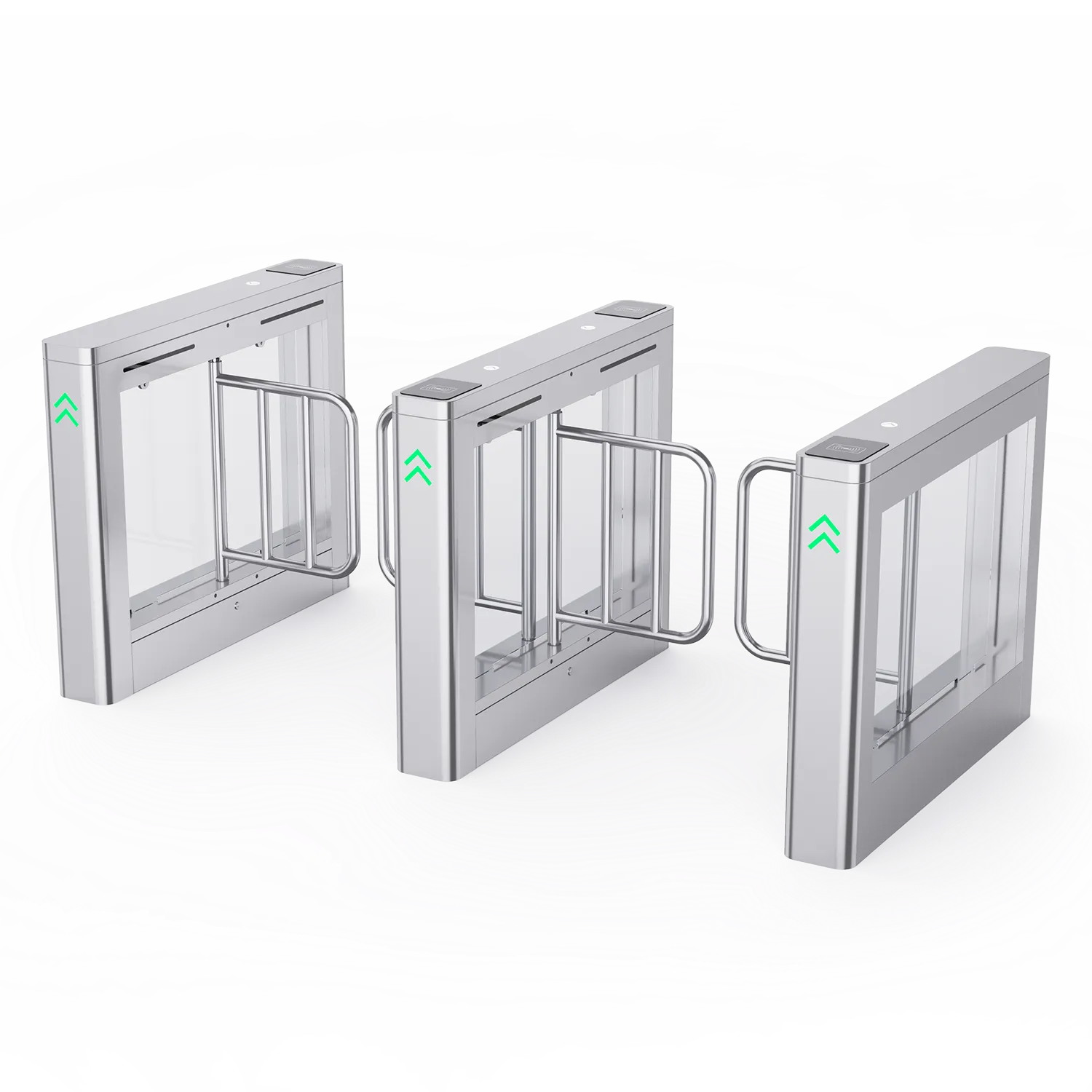

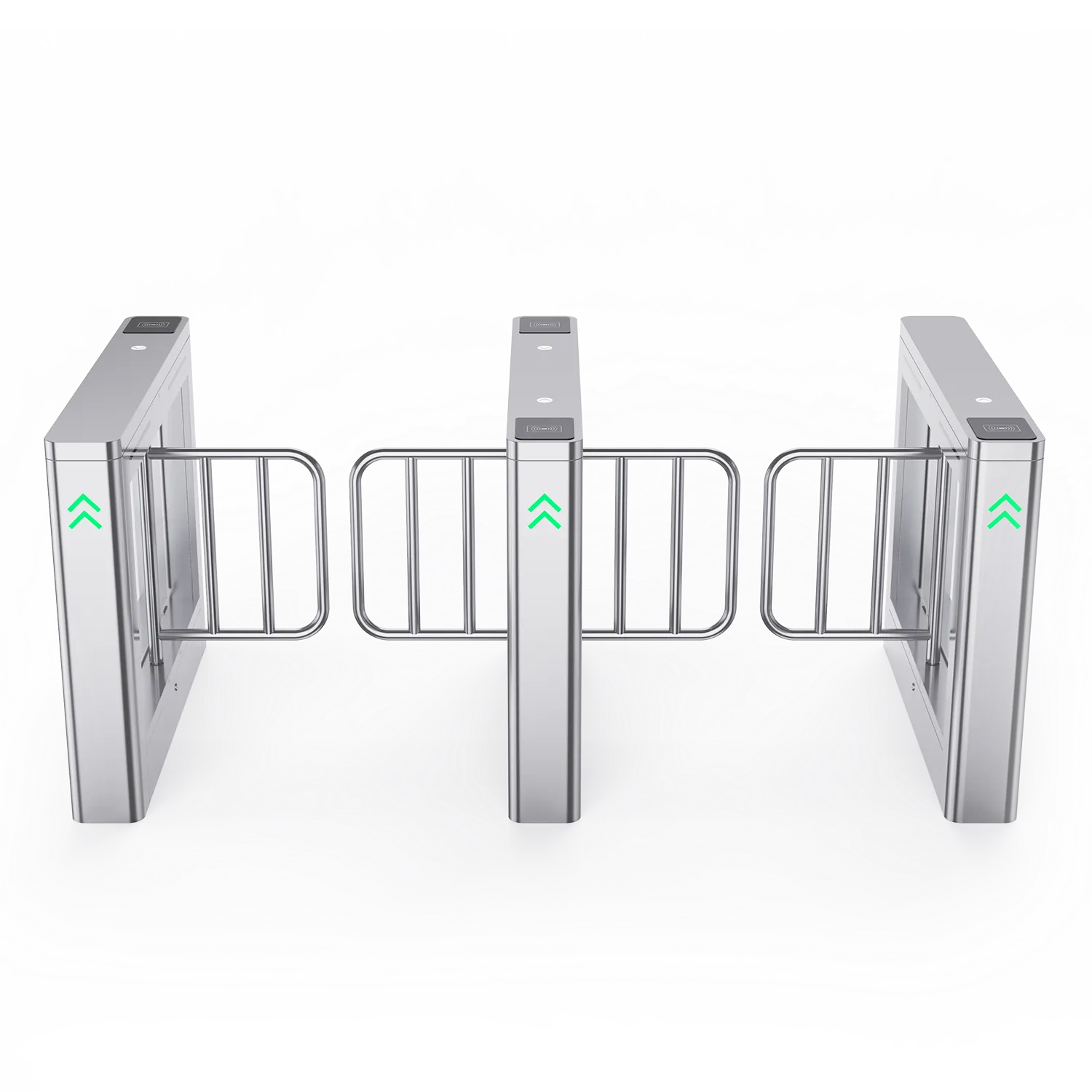

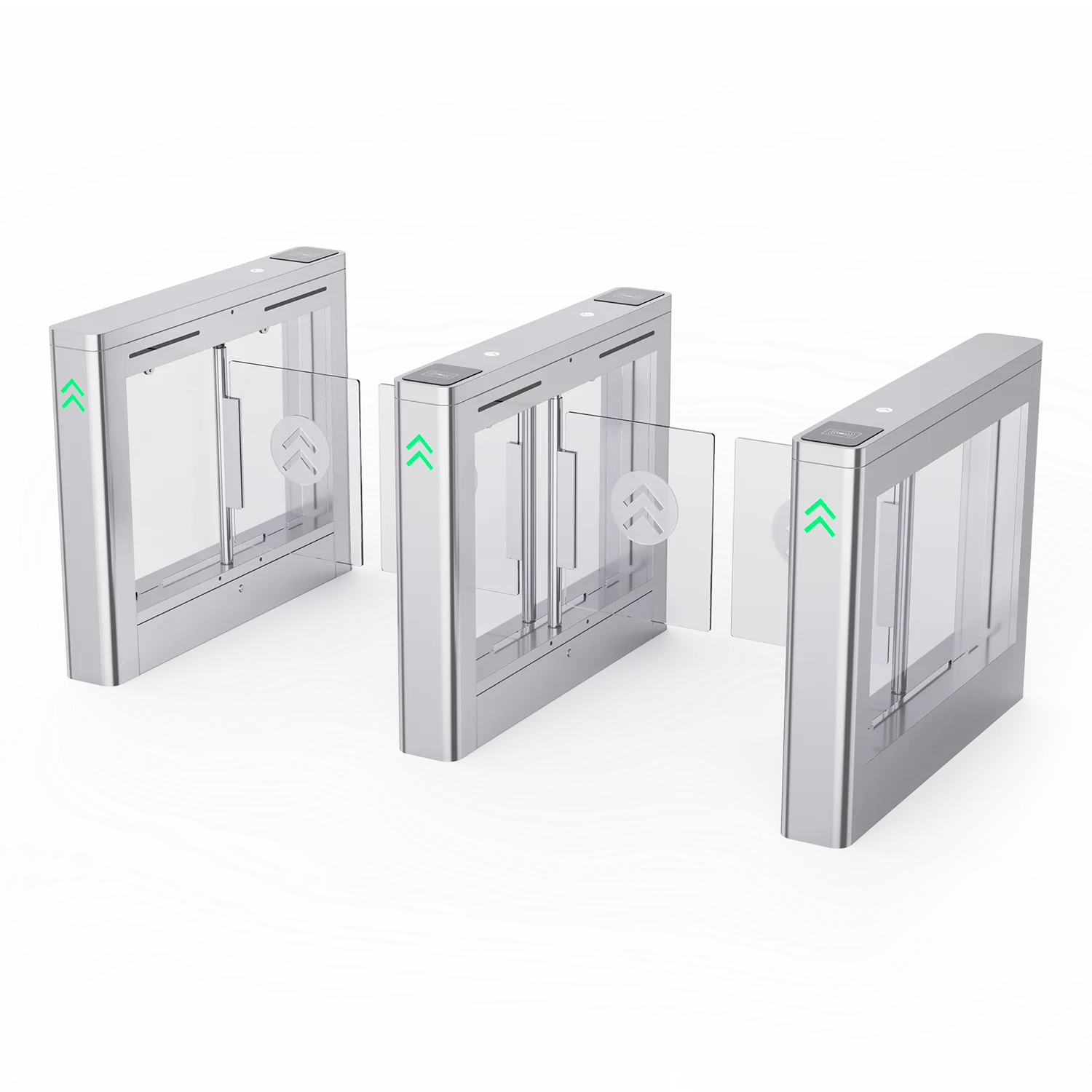

FJC-Z2528 Swing Gate
FJC-Z2528
The FJC-Z2528 is a cost-effective intelligent swing gate. The gate is integrally made of 304 stainless steel. The straight-line brushed surface treatment technology is applied to its case, all sidelines are designed by the arc edge trimming technology, and light and lines are combined as well as both aesthetic feeling and texture. A new generation brushless DC motor and intelligent numerical control technology are built in the gate, so that the gate is characterized with strong power, stable and efficient operation, strict safety protection, and strong applicability, and is widely applied to entrances and exits of communities, parks, and campuses, etc.

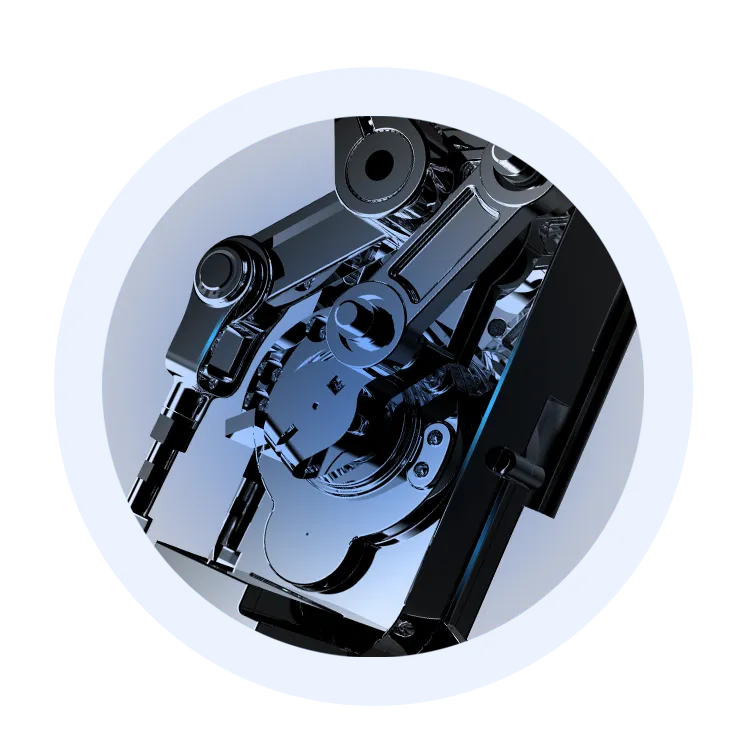

Stable and Efficient Motor
Brushless DC motor, strong power, integrated core design, wear resistance and noise reduction, and stability and efficiency.

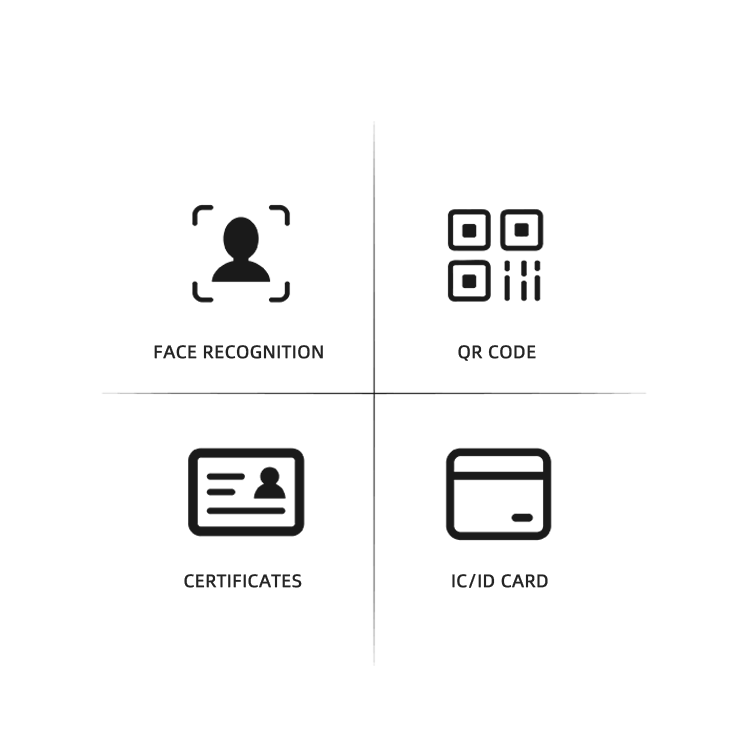

Diversified Access Permissions
Diversified access permissions, and expandable to face recognition, IC card swiping, QR code, and ID card swiping, etc..

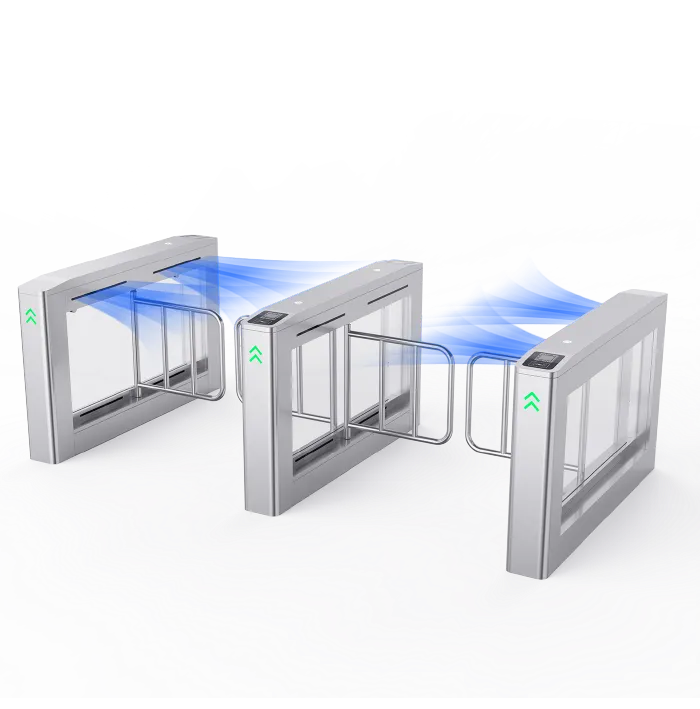

Intelligent Security Protection
Multiple intelligent anti-pinch technologies, as well as the partition detection and fuzzy algorithm, to effectively protect pedestrians.

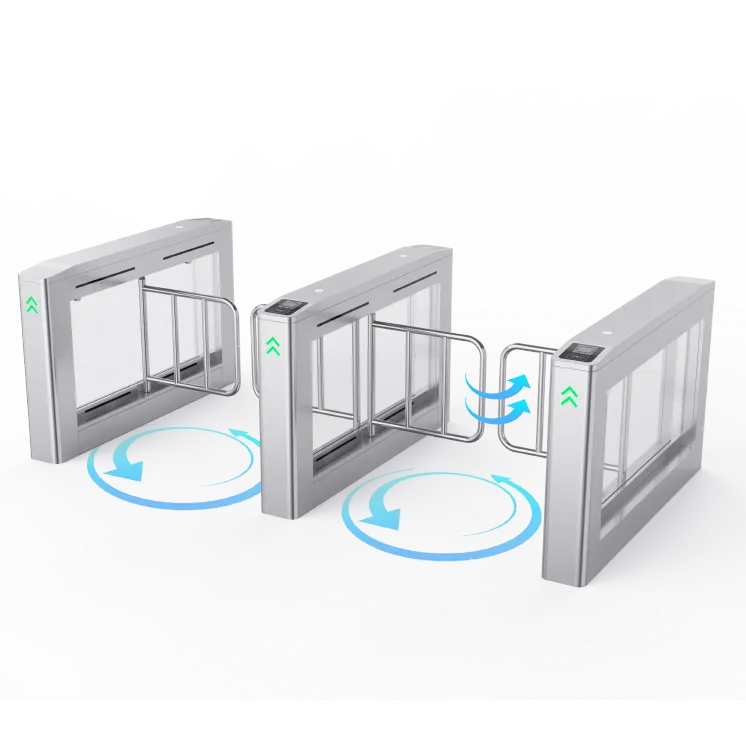

Anti-collision Reset Function
After the ram is impacted by external force, the swing door automatically resets, effectively avoiding mechanical damage caused by accidental collision.
Acousto-optic Interaction
Access indicator light, voice broadcast, and other acousto-optic linkage reminders, making access more comfortable and easier.
Specifications
| Product Model | FJC-Z2528 |
|---|---|
| Body And Side Frame Material | 304 stainless steel |
| Gate Material | Stainless steel or acrylic |
| Top Cover Material | 304 stainless steel |
| Color | Stainless steel original color |
| Dimension (L*W*H) | 1,600*200*980mm |
| Lane Width | 600-1,200mm |
| Gate Interception Height | 750mm |
| Gate Height From The Ground | 211mm |
| Motor | DC brushless motor |
| Power Supply | AC 220V/110V±10%, 50/60Hz |
| Device Power | Total power: 100W, motor power: 40W |
| Passing Speed | Normally closed: 20 persons/minute, normally opened: 40 persons/minute |
| Open-closing Speed | 0.5s-1.5s adjustable |
| Detection Method | Photoelectric switch |
| Number of Electric Eyes | 10 Pairs |
| Communication Interface | Serial port and multi-channel I/O interface |
| Communication | RS485 and TCP/IP |
| Noise | ≤65dB |
| Working Temperature | -25℃ to +70℃ |
| Working Humidity | ≤90%, no condensation |
| Protection Class | IP54 |
| Working Environment | Indoor and outdoor |
