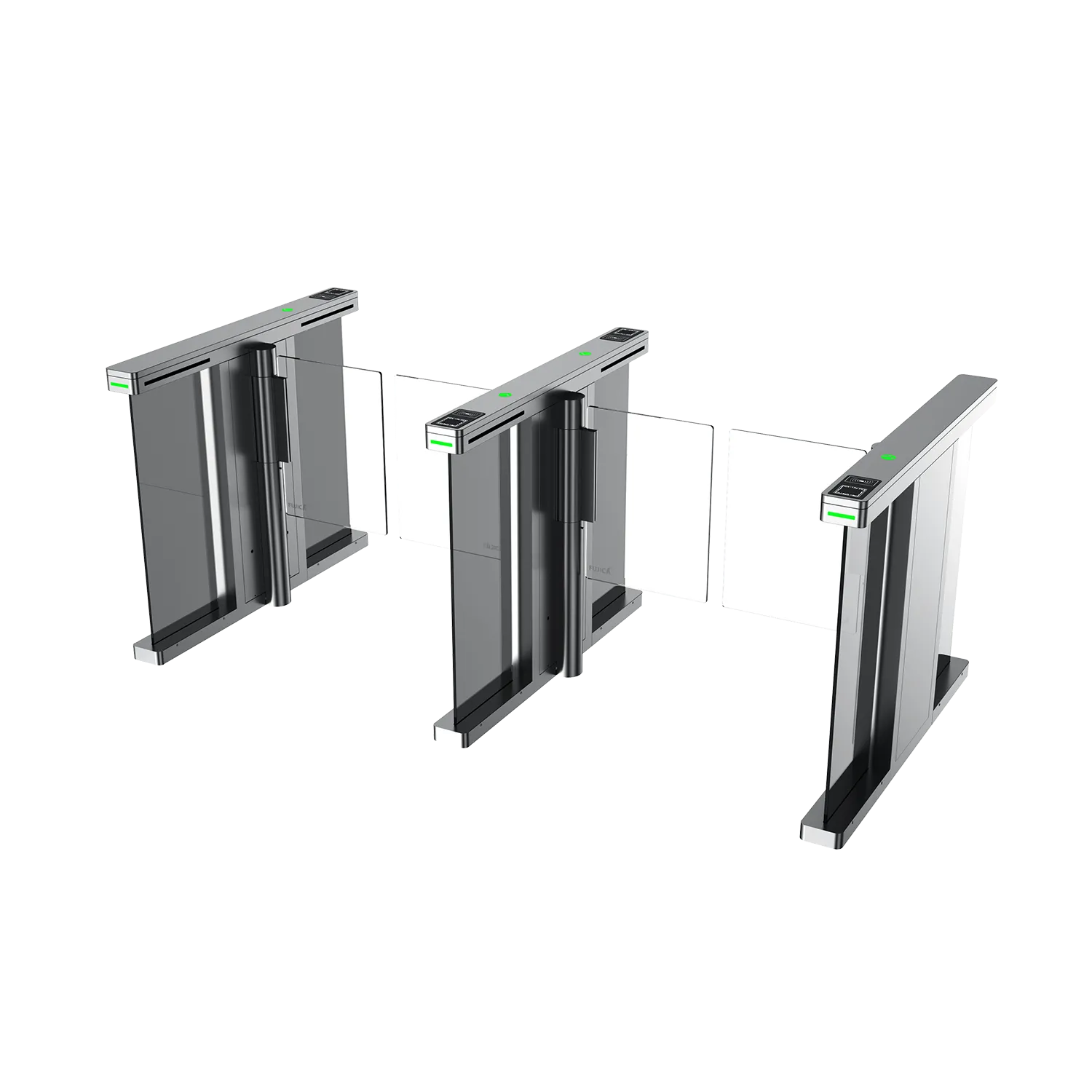

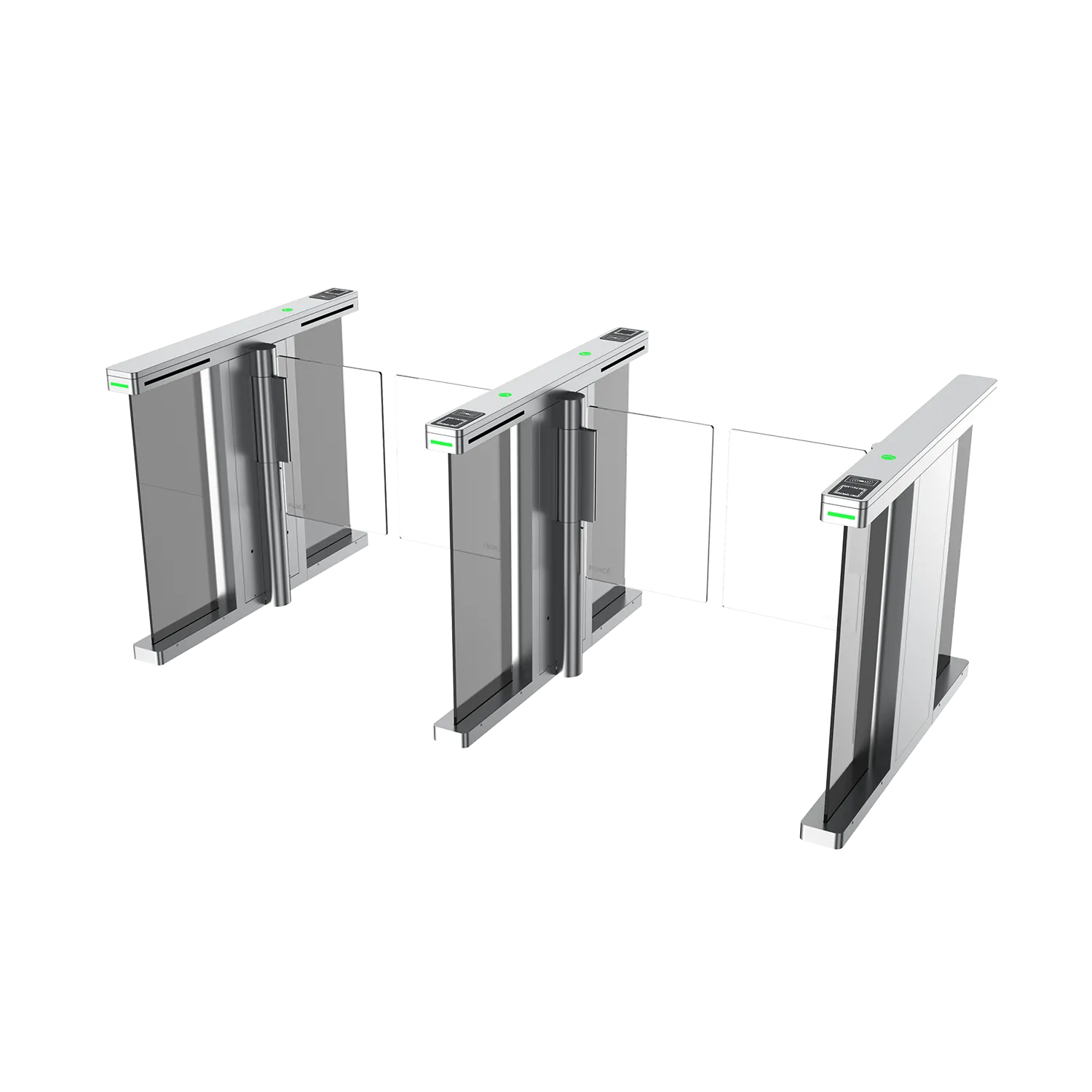

FJC-Z2319 Compact Swing Barrier Turnstile
FJC-Z2319
Fujica FJC-2319 compact speed swing gate is designed for office buildings, and entrance with limited spaces. The overall appearance design of speed gate is compact, slim, and transparent with tempered glass as the main body, which give a bright and clear view in small space. The performance of swing gate is reliable and stable by using Fujica latest drive mechanism, electronic control, and access detection technology.

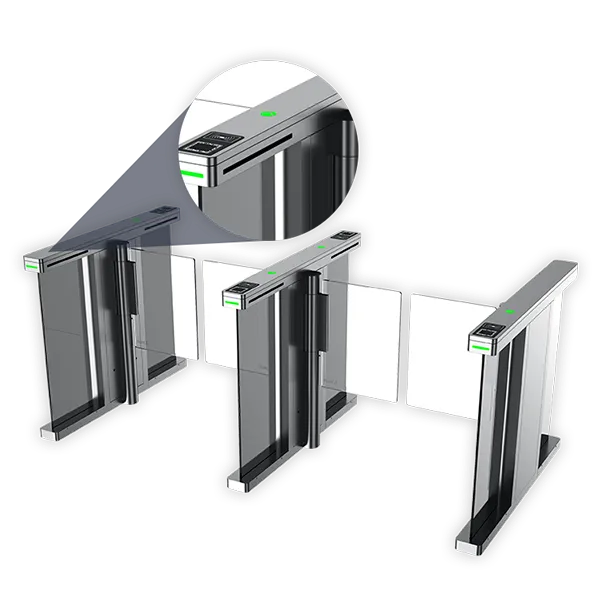

Simple and Exquisite Appearance
It is made of high-quality stainless steel, tempered glass, and acrylic materials, with a high-strength and impact-resistant core frame and a tough and transparent body, showing a simple and exquisite design.

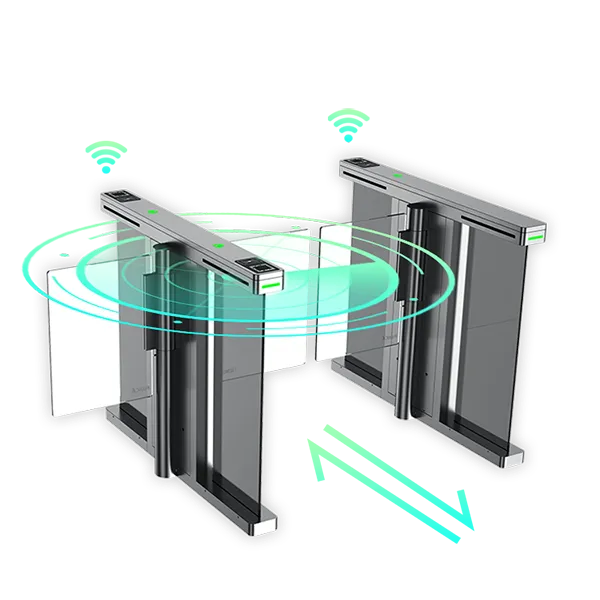

Accurate Security Detection
The smart detection system of the Z3219 swing gate is sensitive and reliable, it is anti-pinch, anti-follow, and anti-reverse passing, anti-break-in. It will issue alarm in sound and light, and the gate will stop or close to protect the safety of users.

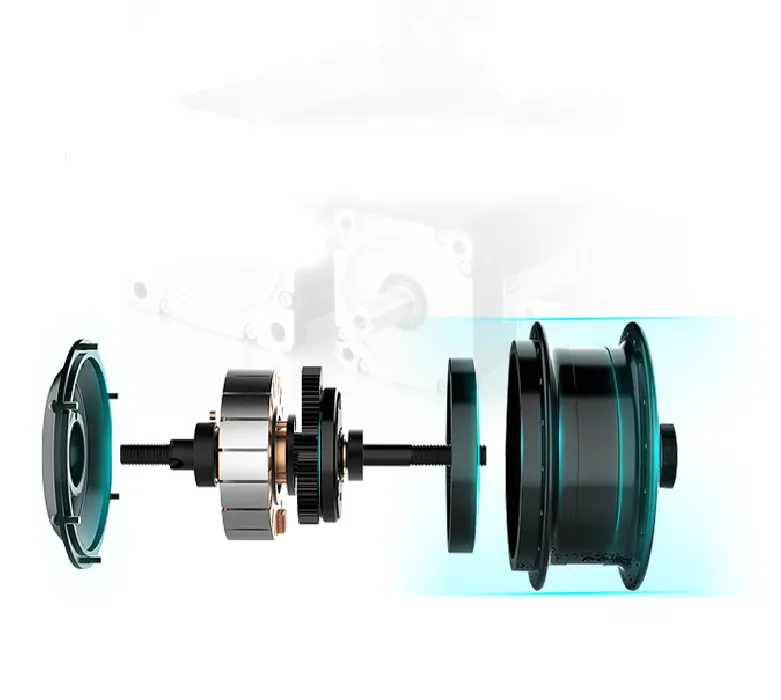

Powerful and Efficient Motor
Adopts a new developed brushless DC motor and servo control technology, the turnstile gate operates in fast speed, stably and accurately, with a long service life and MCBF > 10 million cycles.
Easy Integration and Expansion
The swing gate can be integrated with any access control system, face recognition device, QR code, IC Card, Fingerprint device, etc. And it can be also integrated with building information system, fire alarm system, CCTV system, etc.
Automatic Management and Self-inspection
The swing gate will automatically self-inspection, and restore zero-point when power on; unlock when being powered off or in case of emergency.
Specifications
| Parameter | FJC-Z2319 |
|---|---|
| Product Model | FJC-Z2319 |
| Body & Side Frame Material | 304 stainless steel |
| Gate Material | Stainless steel or acrylic |
| Top Cover Material | 304 stainless steel |
| Color | Stainless steel original color |
| Dimension (L*W*H) | 1,200*120*980mm |
| Lane Width | 800mm-1150mm |
| Gate Interception Height | 782mm |
| Gate Height From The Ground | 245mm |
| Motor | DC brushless motor |
| Power Supply | AC 220V/110V±10%, 50/60Hz |
| Device Power | Total power: 100W, motor power: 40W |
| Passing Speed | Normally closed: 20 persons/minute Normally opened: 40 persons/minute |
| Open-closing Speed | 0.55s-1.55s adjustable |
| Detection Method | Photoelectric switch |
| Number of Electric Eyes | 6 Pairs |
| Communication Interface | Serial port and multi-channel I/O interface |
| Communication | RS485 and TCP/IP |
| Noise | ≤65dB |
| Working Temperature | -25℃ to +70℃ |
| Working Humidity | ≤90%, no condensation |
| Protection Class | IP4X |
| Working Environment | Indoor |
