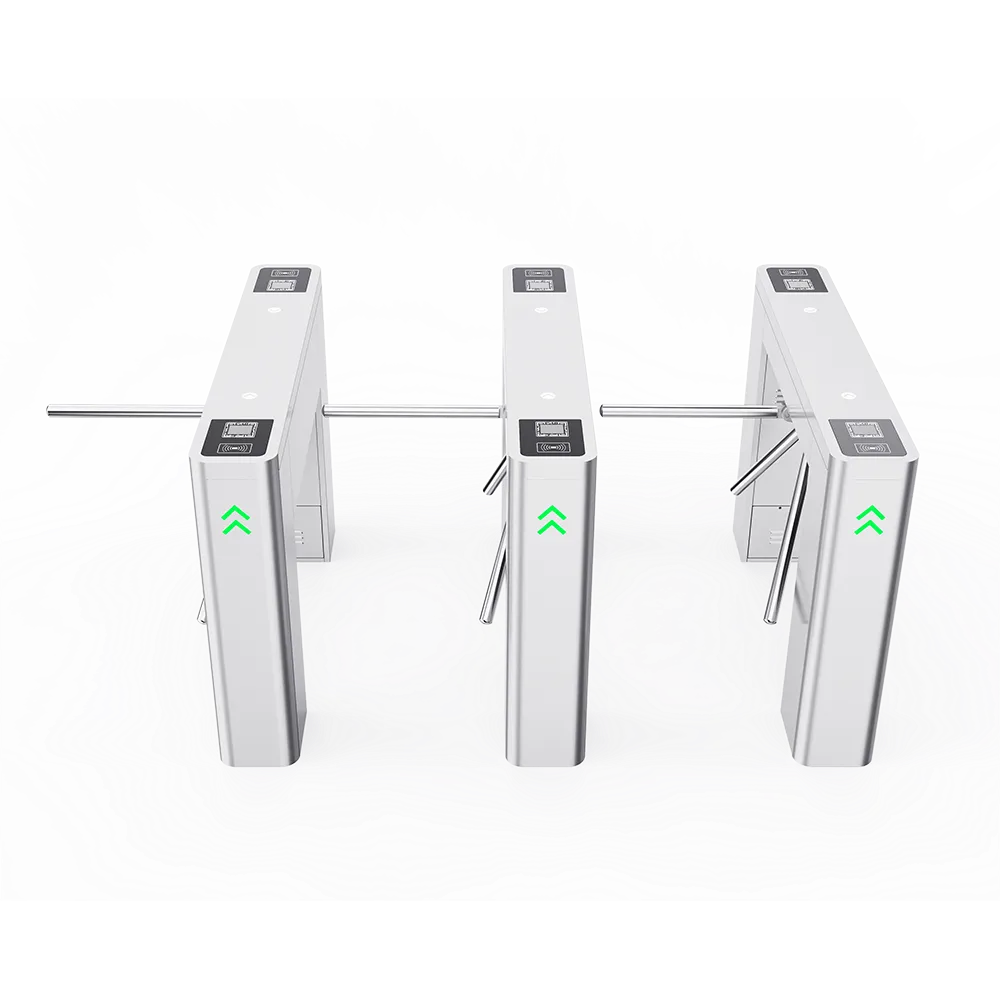

FJC-Z3219 Automatic Tripod Turnstiles
FJC-Z2689 Series
Fujica FJC-Z2689 serial intelligent premium speed gate is made of 304 stainless steel and integrally shaped by coated cold-rolled plate. Its appearance is designed as a modern and simple style matched with lights and lines, giving the whole product a unique modern aesthetic feeling. This serial product uses the grating detection technology, is equipped with 64 pairs of electric eyes, and integrates functional modules such as the access control, face recognition, QR code scanner, main controller, and voice system. The product is characterized with a high standard, high quality, high integration, and high security, etc.
Stable and Reliable Operation

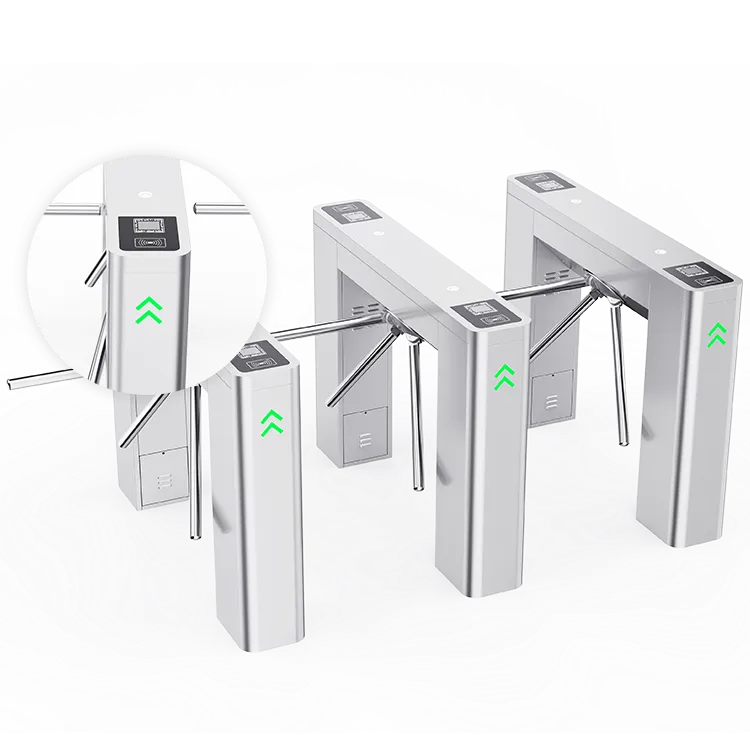

● Reliable pedestal turnstile with three arms.

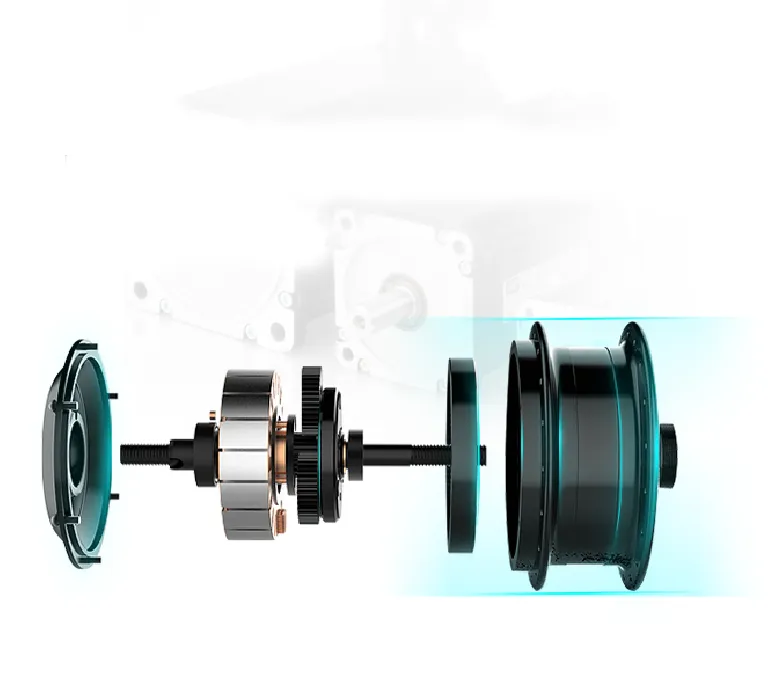

● Uses the brushless DC motor, which can work smoothly and stably.
● Decelerate and stop buffering automatically when the motor is to be in place.
● Use self-centering mechanism to ensure complete rotation into the home position.
● 32-bit ARM processor, greatly improve the operation speed and stability of the system.
Expand Multiple Functions
● Self-checking after power-on.
● One or two way passage adjustable.
● Sound and light prompt and alarm functions.
● Automatic reset function.
● Automatic locking lever.
● Counting function.
Installation and Maintenance
● Modular design makes the structure simpler and easier to install.
● Unified standard external electrical interface.
● Support multiple gate opening signal inputs.
● Replacement time of core components is short, meeting the needs of rapid operation and maintenance implementation.
Reliable Safety Measures
● ntegrate with fire alarm protection .
● Support voice customization broadcasting for different languages.
● Integrated with ticketing systems, face recognition system, IC card , QR code, ID card , and elevator control systems.
● The main controller can integrate voice broadcast, voice control, brushless DC motor control, RS485 bus, TCP/IP network interface and other functions.
Specifications
| Parameter | FJC-Z3219 |
|---|---|
| Product Model | FJC-Z3219 |
| Frame Material | 304 stainless steel |
| Dimension (L*W*H) | 1,300*220*950mm |
| Lane Width | 550mm |
| MFCB | ≥3 million times |
| Working Voltage | AC 220V/110V±10% 50/60Hz |
| Total Power | 50W |
| Communication Protocol | RS485 or TCP/IP |
| Working Temperature | -25℃ to +70℃ |
| Relative Humidity | ≤95%, no condensation |
| Working Environment | Indoor and outdoor |
