FJC-Z3319B Automatic Tripod Turnstiles

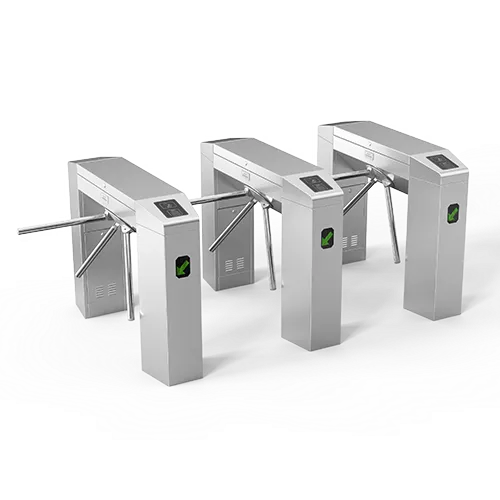

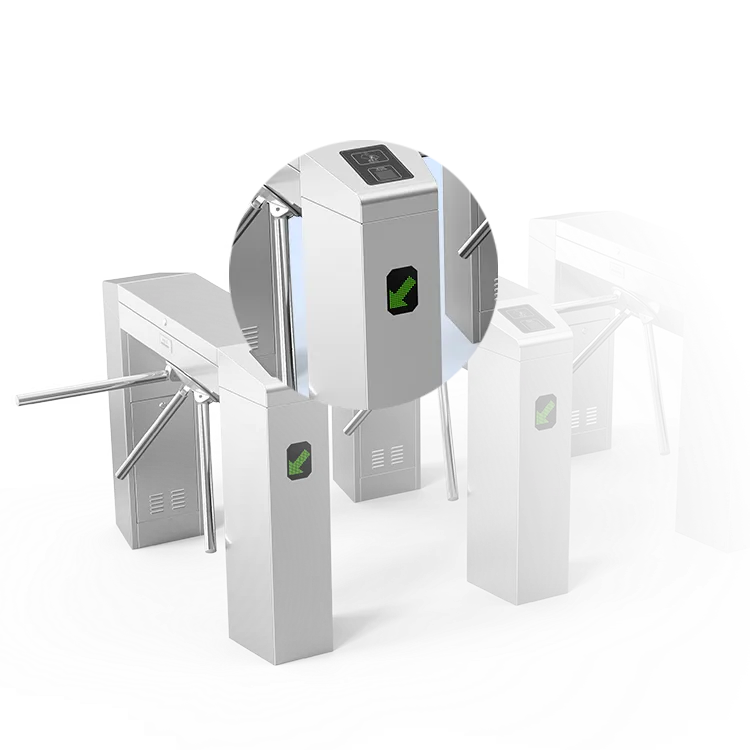

The FJC-Z3319B automatic tripod turnstile is an important access control device of the Fujica System pedestrian control system. It forms an intelligent tripod turnstile management system in combination with management software, which can automatically manage entrance and exit control, attendance at work, and queuing for meals, etc., and achieve functions such as door access control, flow restriction, and attendance. The tripod can be widely applied to entrances and exits of scenic spots, communities, stations, docks, large-scale venues, enterprises, factories, and mines, etc., and strictly ensure pedestrian passes one by one to prevent tailing. The turnstile features the arch-style body with strikingly cool trapezoidal ends. LED red and green indicator lights direct pedestrian traffic and the model can be field programmed as one-way or two-way.
Stable and Reliable Operation
● Reliable pedestal turnstile with three arms·
● Uses the brushless DC motor, which can work smoothly and stably·
● Decelerate and stop buffering automatically when the motor is to be in place.
● Use self-centering mechanism to ensure complete rotation into the home position.
● 32-bit ARM processor, greatly improve the operation speed and stability of the system.
High Throughput
● Self-checking after power-on.

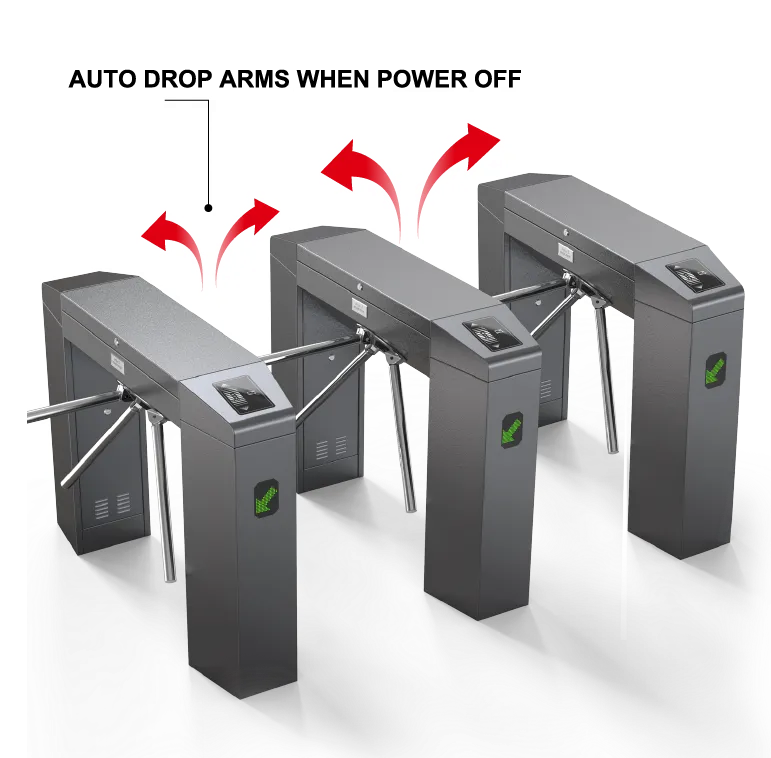

● One or two way passage adjustable.
● Automatic reset function.
● Automatic locking lever.
● Counting function.
Installation and Maintenance
● Modular design makes the structure simpler and easier to install.
● Unified standard external electrical interface.
● Support multiple gate opening signal inputs.
● Replacement time of core components is short, meeting the needs of rapid operation and maintenance implementation.
Reliable Safety Measures
● Integrate with fire alarm protection.
● Multiple input and output ports, can be configured to user requirements.
● Support voice customization broadcasting for different languages.
● Integrated with ticketing systems, face recognition system, IC card , QR code, ID card , and elevator control systems.
● The main controller can integrate voice broadcast, voice control, brushless DC motor control, RS485 bus, TCP/IP network interface and other functions.
Specifications
| Product Model | FJC-Z3319B |
|---|---|
| Frame Material | 304 stainless steel |
| Dimension (L*W*H) | 1,300*280*950mm |
| Lane Width | 550-600mm |
| MFCB | ≥3 million times |
| Working Voltage | AC 220V/110V±10% 50/60Hz |
| Total Power | 50W |
| Communication Protocol | RS485 or TCP/IP |
| Working Temperature | -25℃ to +70℃ |
| Relative Humidity | ≤95%, no condensation |
| Working Environment | Indoor and outdoor |
