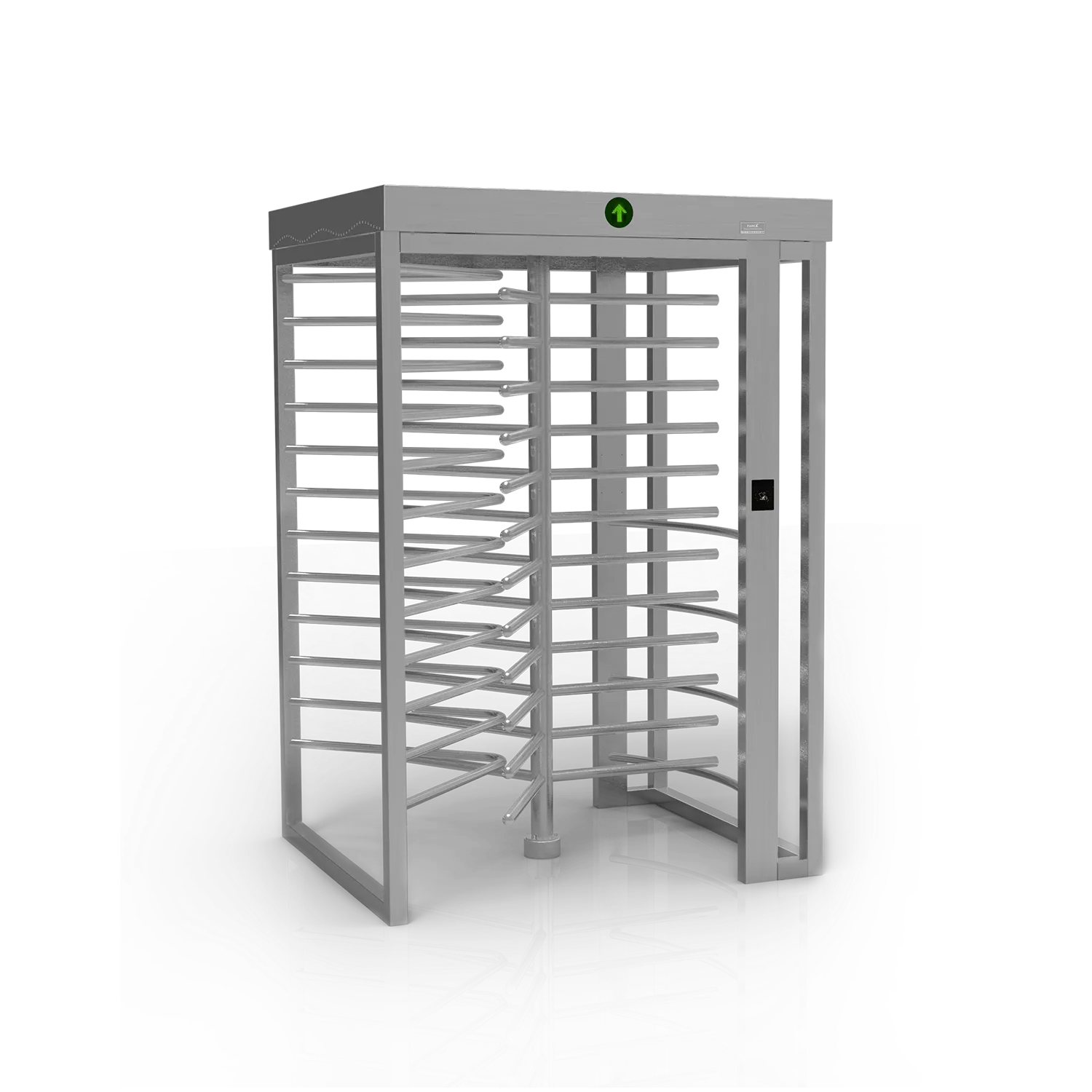

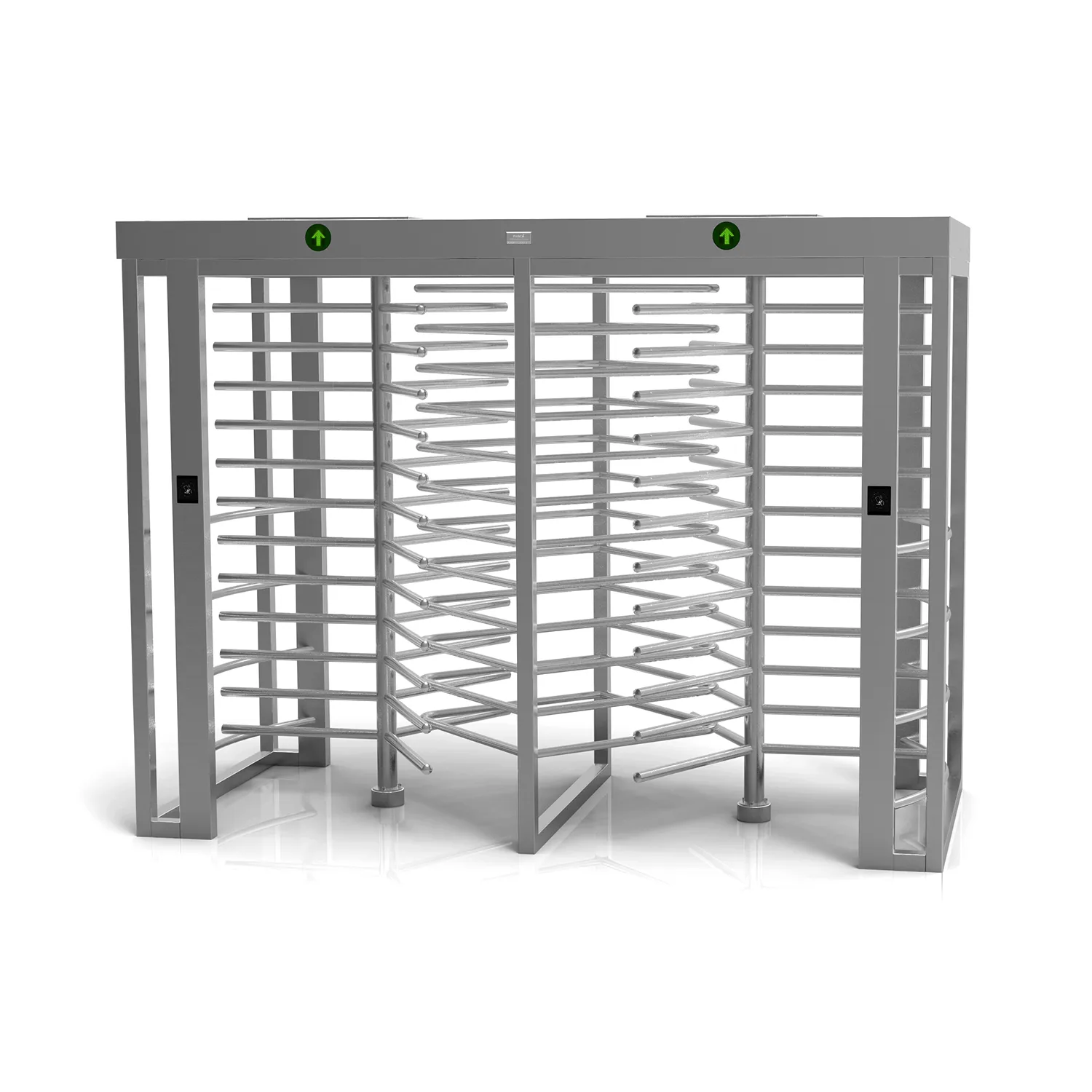

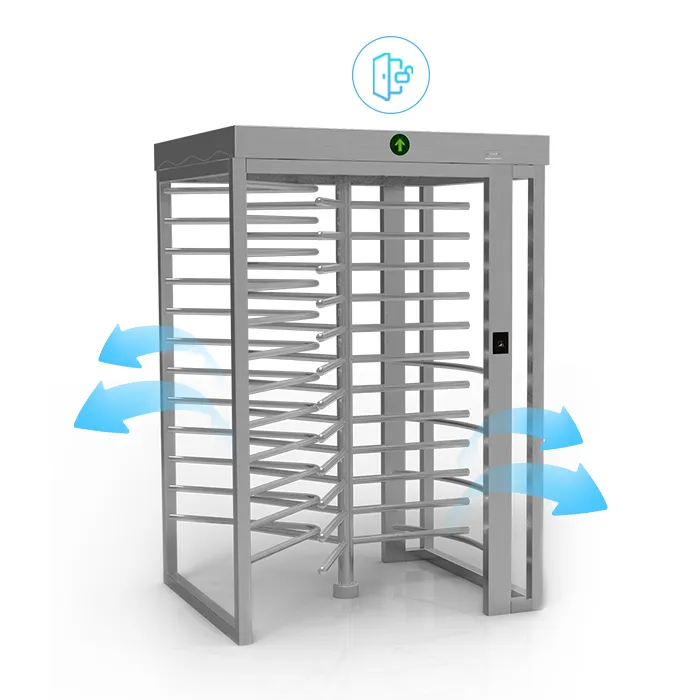

FJC-Z5518B Full Height Turnstile
FJC-Z5518B
The FJC-Z5518B Full Height Turnstile gate adopts closed design, and is integrally made of 304 stainless steel plate metal and profile material. Its outer surface is processed by the brushing technology, with delicate lines, soft touch, and better texture. In addition, the gate has an integrated core structure which supports one/two-way access, so as to provide a fast traffic speed, and more stable, reliable, and durable performance. It is applied to subway stations, airports, and other areas that require strict control, which can effectively prevent squeezing, crossing, and climbing. The FJC-Z5518 Full Height Turnstile further reinforces secure access control in demanding environments. Featuring a full-height rotating barrier, this turnstile is constructed with robust materials capable of withstanding heavy usage in both industrial and commercial settings. Its design prioritizes preventing unauthorized access, making it an ideal solution for locations with stringent security requirements.

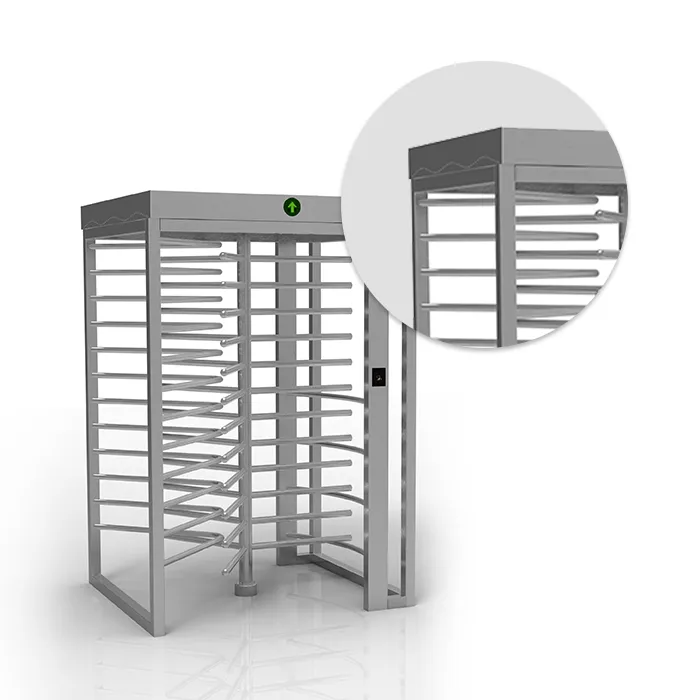

Sturdy and Durable
Full Height Turnstiles are constructed with robust 304 stainless steel materials to ensure durability and resistance to wear and tear. This durability is crucial for withstanding heavy usage in various environments.
Mechanical Automatic Resetting
Mechanical reset function, to prevent person injury caused by any electrical failure.

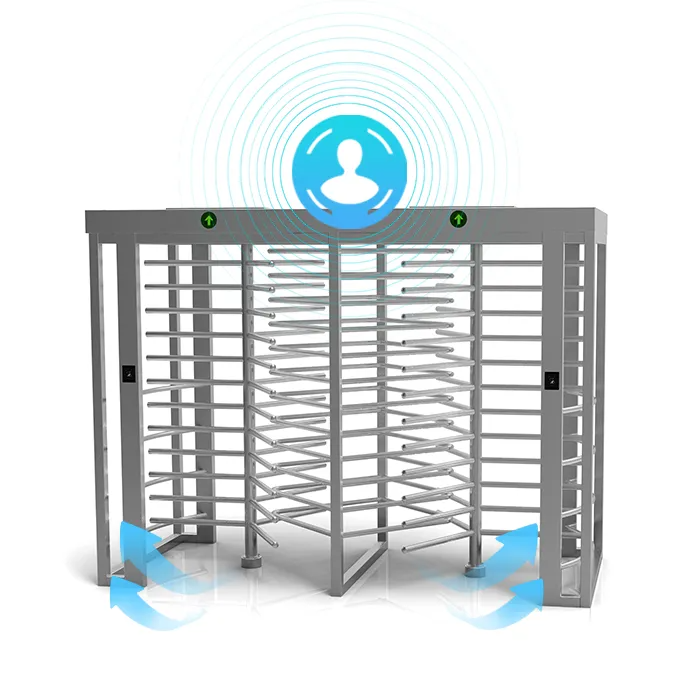

Fast Identification and Authentication
Fast authentication recognition response speed for the gate, to make people pass quickly. The integrated design of Full Height Turnstiles aims to optimize traffic speed, ensuring efficient and swift pedestrian movement without compromising on security measures.

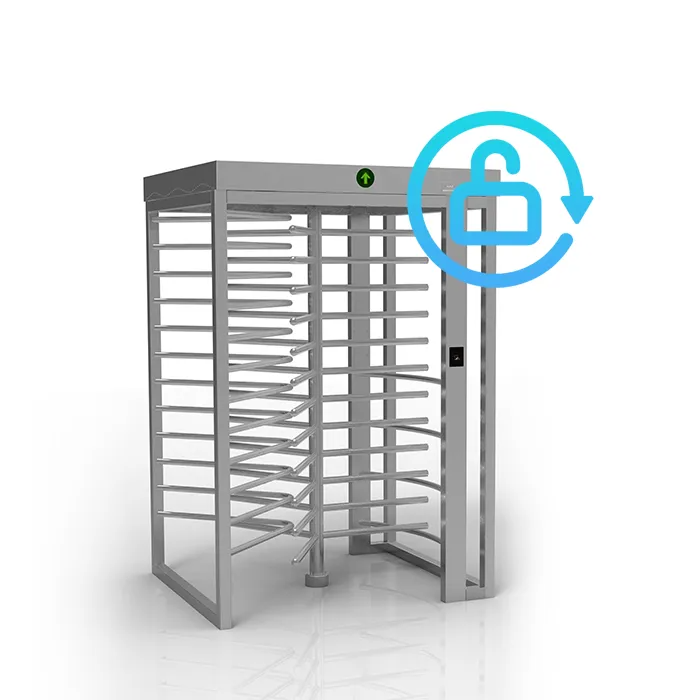

Reliable Safety Protection Measures
Automatically unlock the gate when powered off, to evacuate people in free access mode.

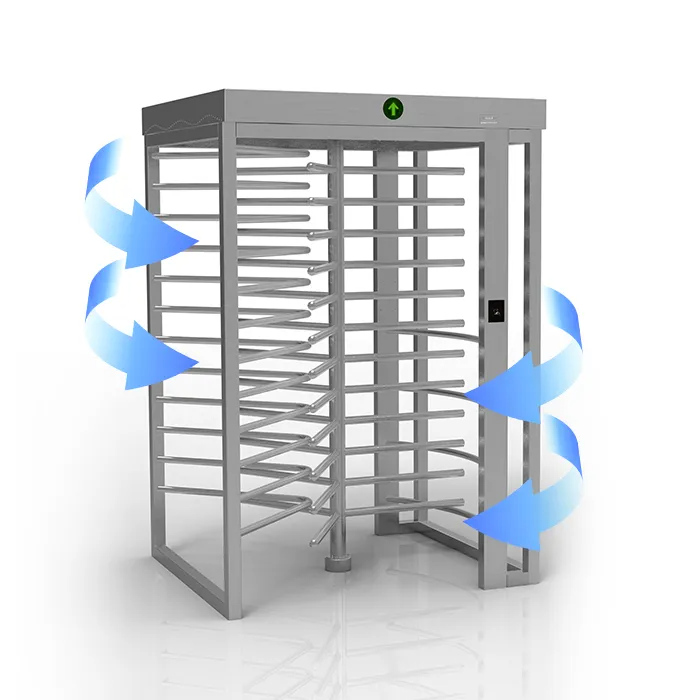

Anti Reverse Rotation
Anti reverse rotation function, meaning that the system will automatically lock after the gate bar rotates at a certain angle, to prevent pedestrians from going in a reverse direction.
Full-Height Rotating Barrier
The full-height rotating barrier is a defining feature, preventing unauthorized access and ensuring that only one person can pass through at a time. This physical barrier enhances security and deters tailgating.

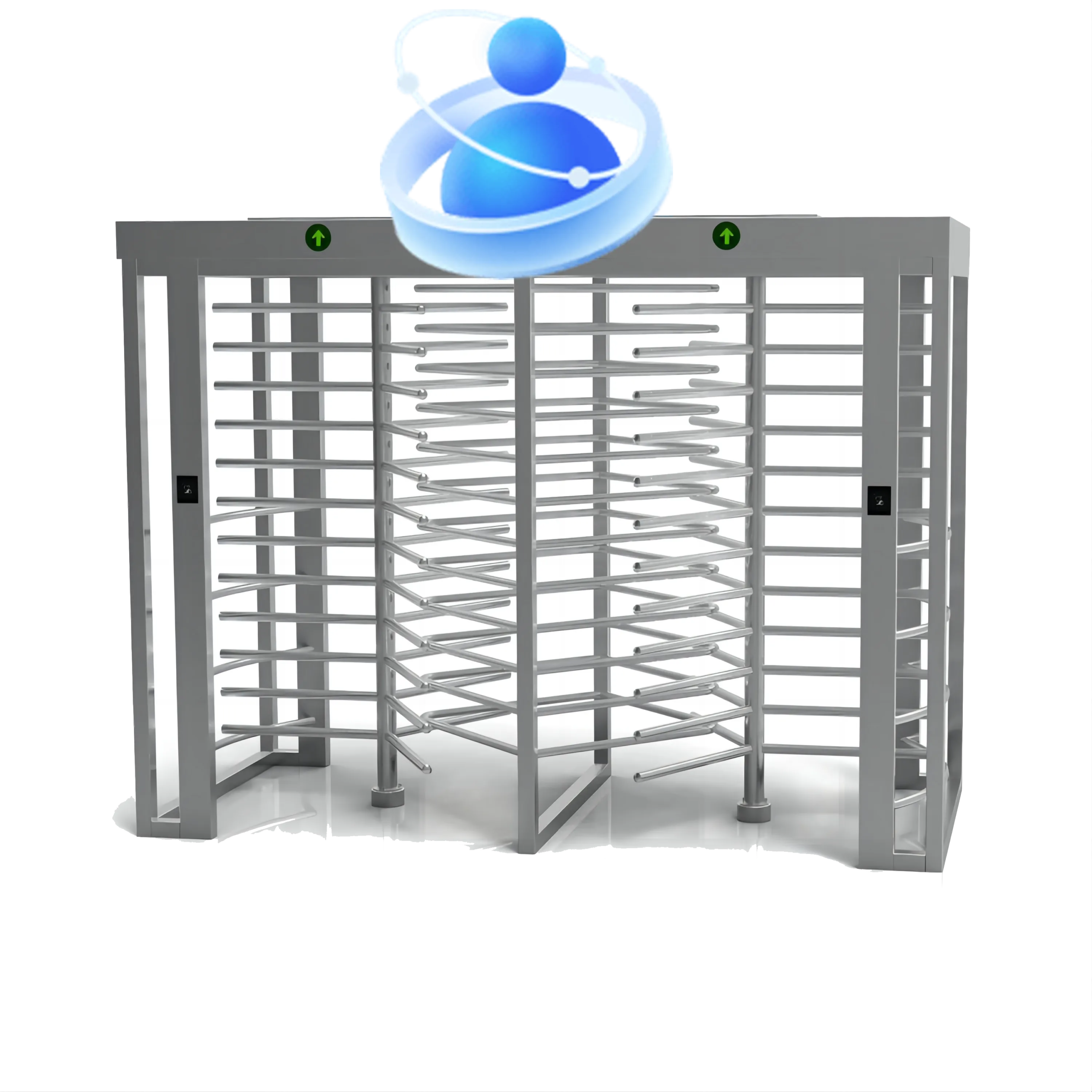

User-Friendly Operation
Despite their high level of security, Full Height Turnstiles are designed to be user-friendly, allowing authorized individuals easy and efficient passage while maintaining a strong deterrent against unauthorized access.
Specifications
| Parameter | FJC-Z5518B |
|---|---|
| Product Model | FJC-Z5518B |
| Frame Material | 304 stainless steel |
| Dimension (L*W*H) | 1,500*1,400*1,199mm |
| Lane Width | 630mm (one-way/two-way access) |
| Access Speed | 40 persons/minute |
| Working Voltage | AC 220V/110V±10% 50/60Hz |
| Total Power | Single motor: 50W, Double motors: 100W |
| Communication Protocol | RS485 or TCP/IP |
| Working Temperature | -30℃ to +70℃ |
| Relative Humidity | ≤95%, no condensation |
| Working Environment | Indoor and outdoor |
