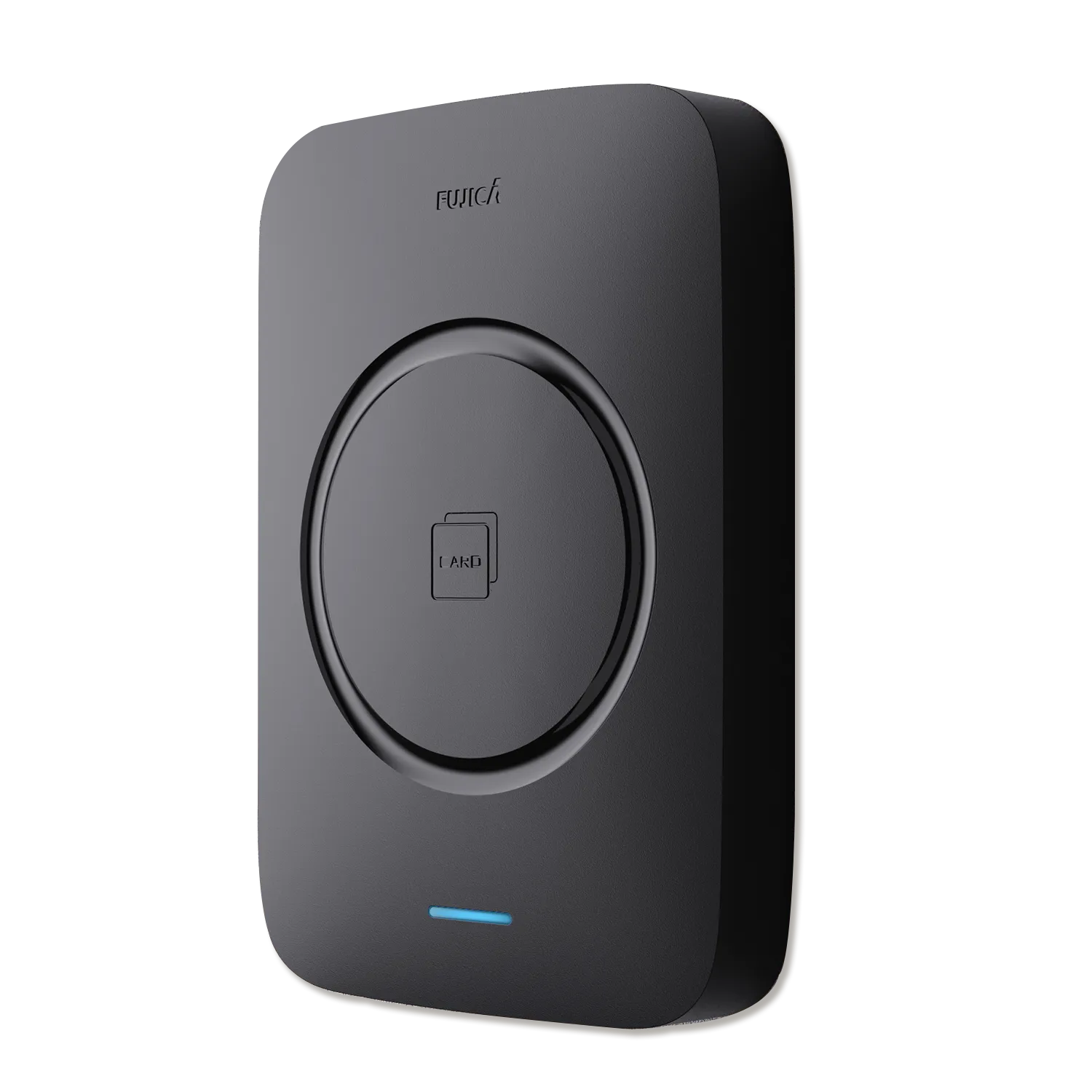

FJC-MAT656 Integrated Access Control
FJC-MAT656
FJC-MAT656 is a smart access control device specially launched for office buildings, factories, parks and other places. It adopts a simple appearance design and supports quick opening of the door by swiping a card. It has the advantages of large storage capacity, strong scene adaptability, easy installation and rapid deployment. , providing safe and convenient access control services.

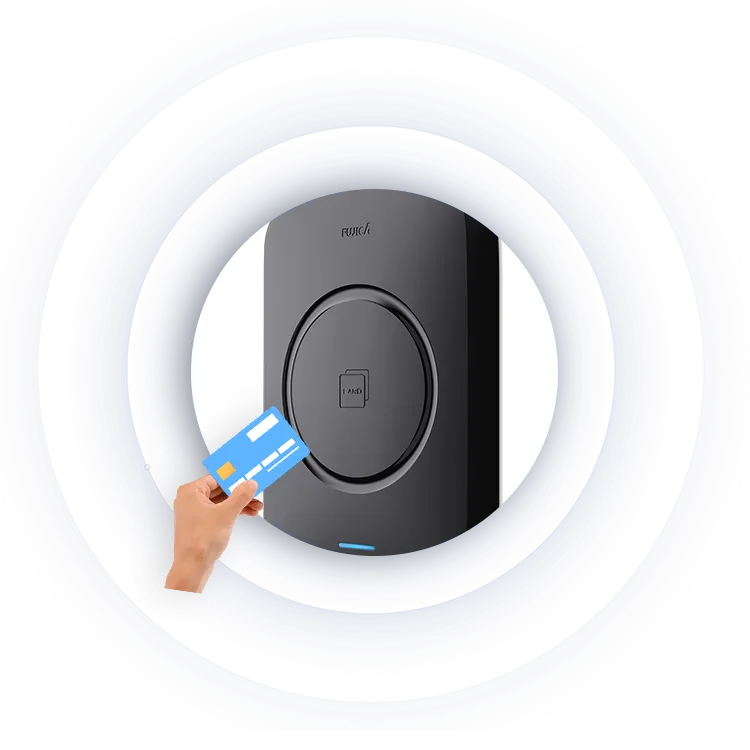

Quickly Swipe the Card to Open the Door

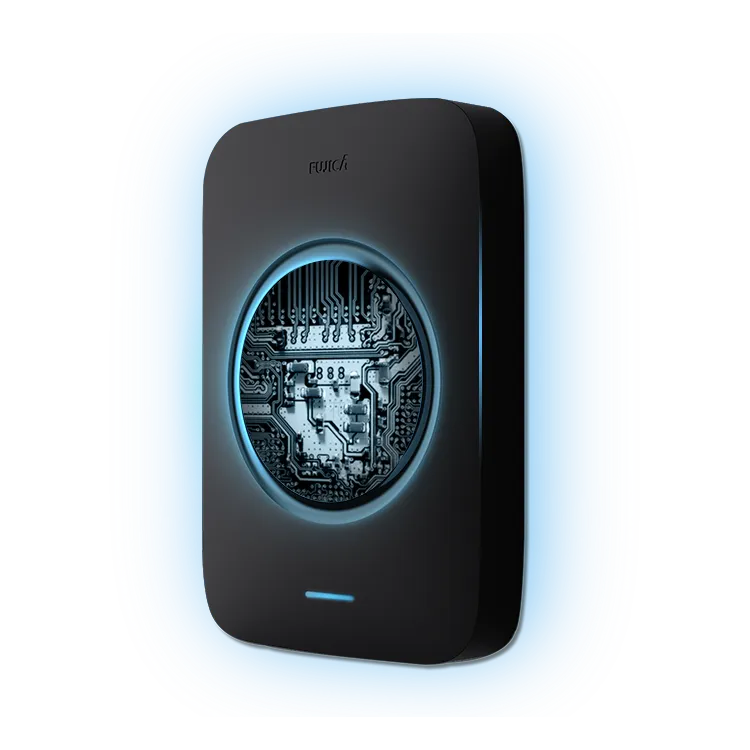

Industrial-grade intelligent processor, sensitive touch recognition, efficient information processing, quick card authentication to open the door.
Extra Large Data Capacity
Up to 30,000 user lists and 51,200 data records.

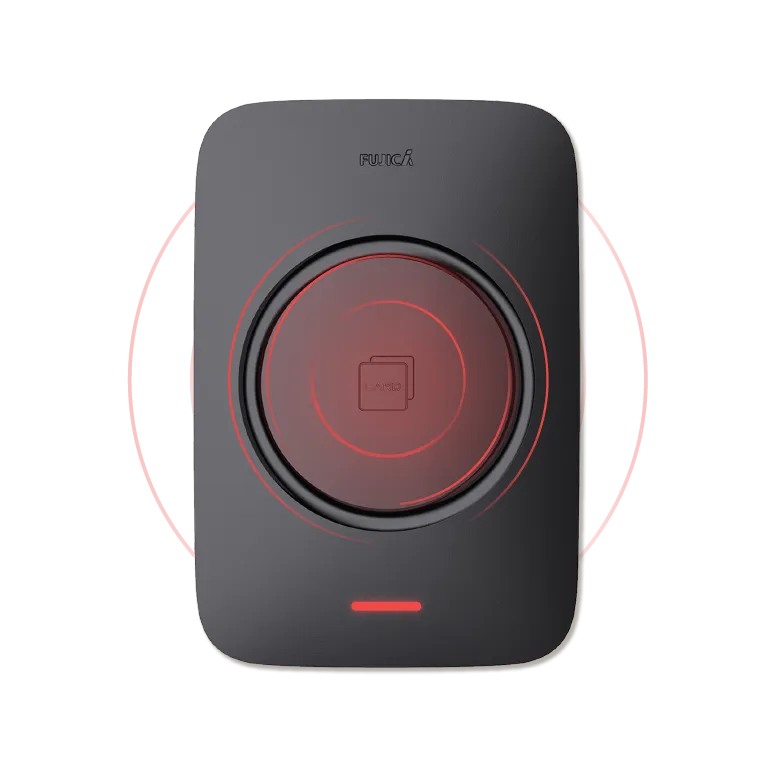

Sound and Light Intelligent Interaction
During the card authentication process, the sensor light and buzzer sound interact intelligently, allowing you to experience humanized access services.
High Security Design
Supports various security alarms such as illegal entry, fire protection, coercion, door opening timeout, anti-pry, etc.
Product Specifications
| Product Model | FJC-ZRS696LM | FJC-ZRS696LT | FJC-ZRS696PT |
|---|---|---|---|
| Body Material | Aluminum alloy body and tempered glass panel | ||
| Dimension (L*W*H) | 113.9*65.7*225.2mm | 113.8*145.8*321.2mm | |
| Operating | Linux | ||
| Screen | 7-inch HD LCD screen, with multi-point capacitive touch | ||
| Camera | 2-million-pixel color/infrared lens, deflection angle ±60°, and ultra WDR | ||
| Mask Detection | Unsupported | Supported | |
| Unlock by Face | Recognition distance 0.3-2m | ||
| Recognition Time | 300ms/person | ||
| Recognition Accuracy | ≥99.3% | ||
| Unlock (IC/Password) | IC: ≤3cm, ≤500ms | Password: 8-digit default | ||
| Unlock by QR Code | QR code scanning distance 0.2-0.4m | ||
| Card Capacity | Unlimited IC, 50,000 ID | ||
| Face Capacity | 10,000 (up to 20,000) | 50,000 (up to 100,000) | |
| Working Voltage | DC 9-15V | ||
| Communication | TCP/IP | ||
| Related Interfaces | Power, Relay, RJ45, RS485, USB, Wiegand, Fire alarm, Door magnet, Button | Power, Relay, RJ45, RS485, USB, TTL | RJ45, RS485, TTL, Door opening output |
| Illumination | 0.01-100,000 lux | ||
| Temp/Humidity/IP | -20℃ to +55℃ | ≤95% | IP65 | Indoor/outdoor | ||
