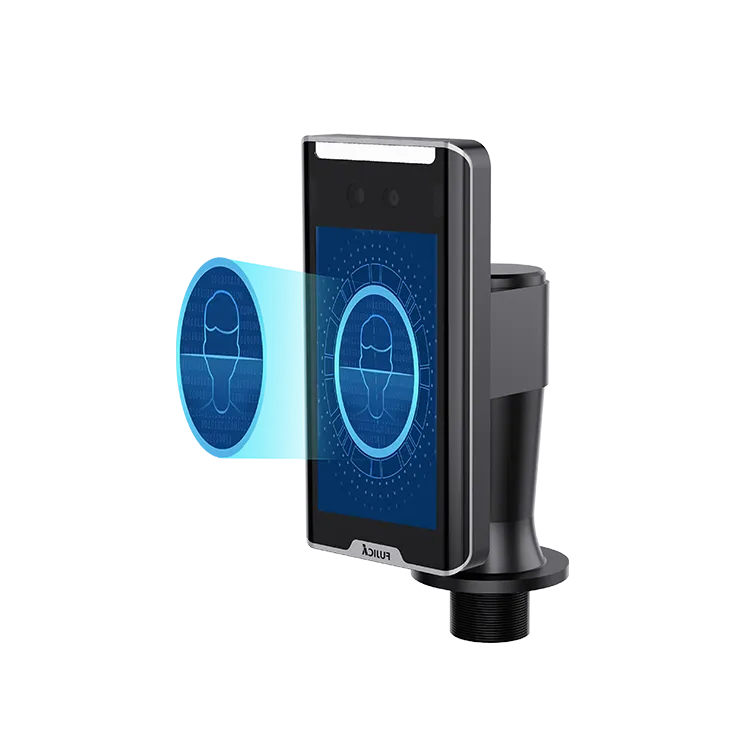

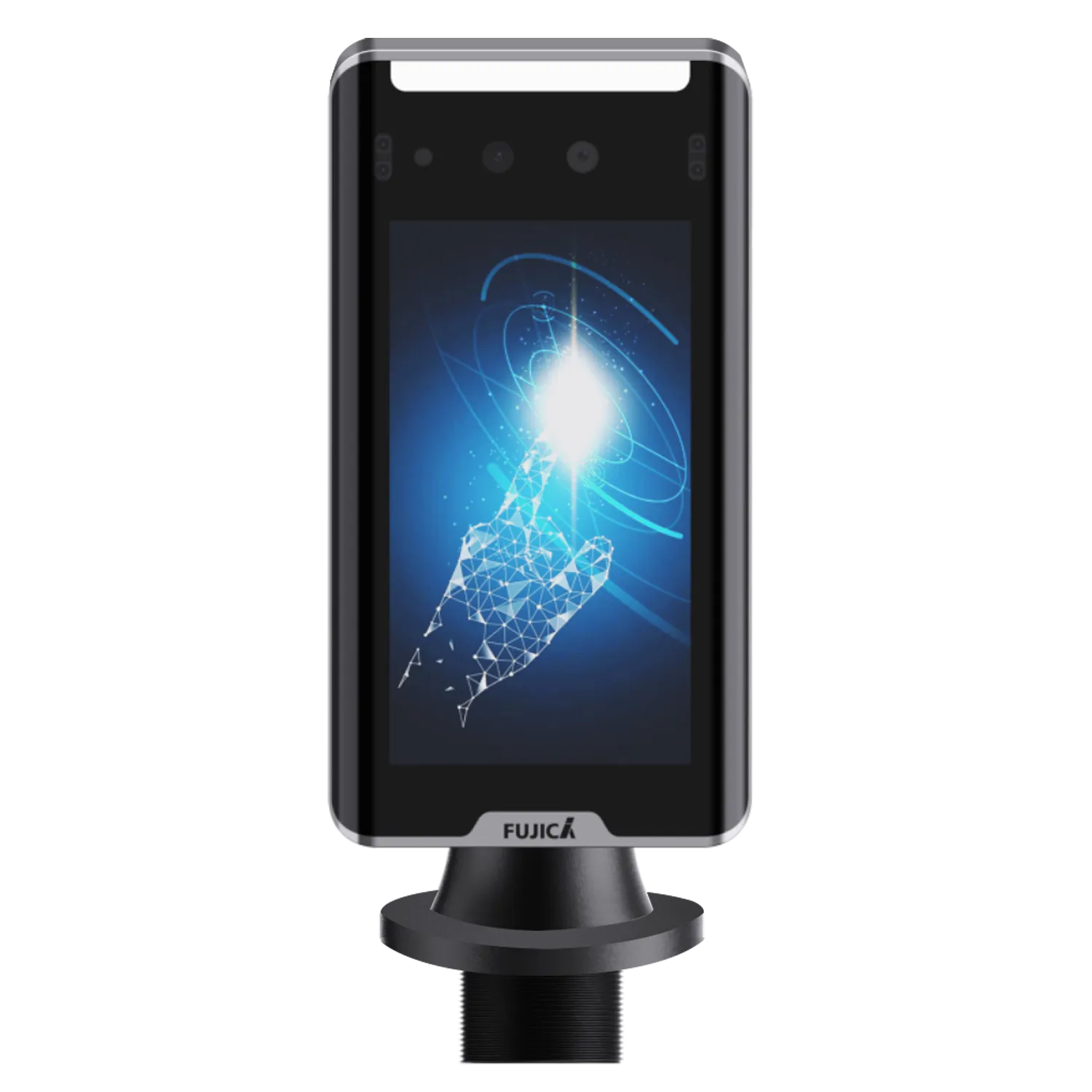

FJC-ZRS626 Face Recognition Terminal
FJC-ZRS626
The FJC-ZRS626 series face recognition terminal adopts the latest deep learning AI algorithm, which can adapt to complex environments such as strong light, back light, and dark light. It can achieve liveness detection and accurate identity verification, significantly enhance access control safety, and improve the passing efficiency and experience. It is suitable for access control system and turnstile gate passage scenarios such as office buildings, schools, stations, enterprises, governments, and scenic spots and exhibition halls, etc.

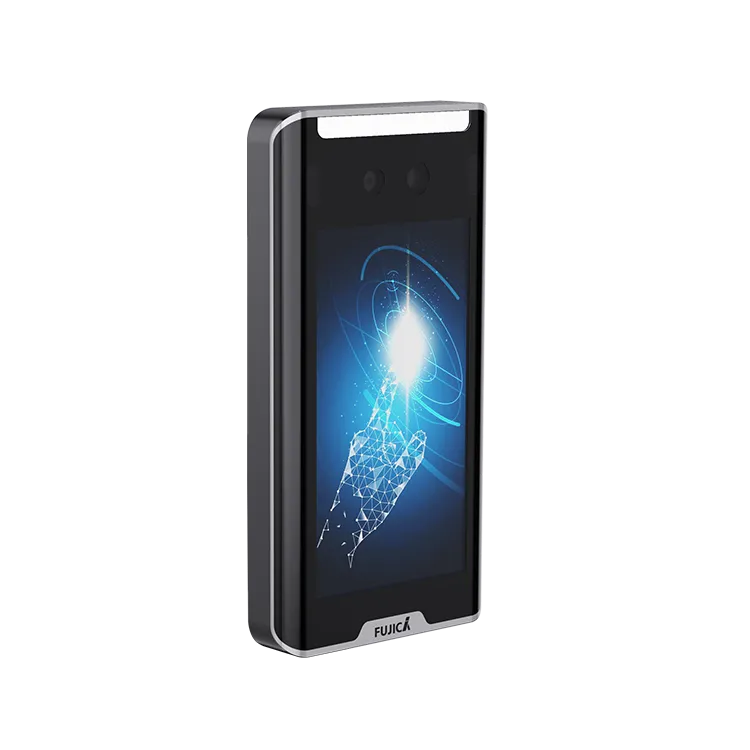

Exquisite and Novel Design
The minimalist and slim body design is equipped with a 5-inch high-definition curved glass screen and is surrounded by curved silver edges. The overall look is unique, novel, exquisite and fashionable.
Extremely Fast Face Recognition Speed

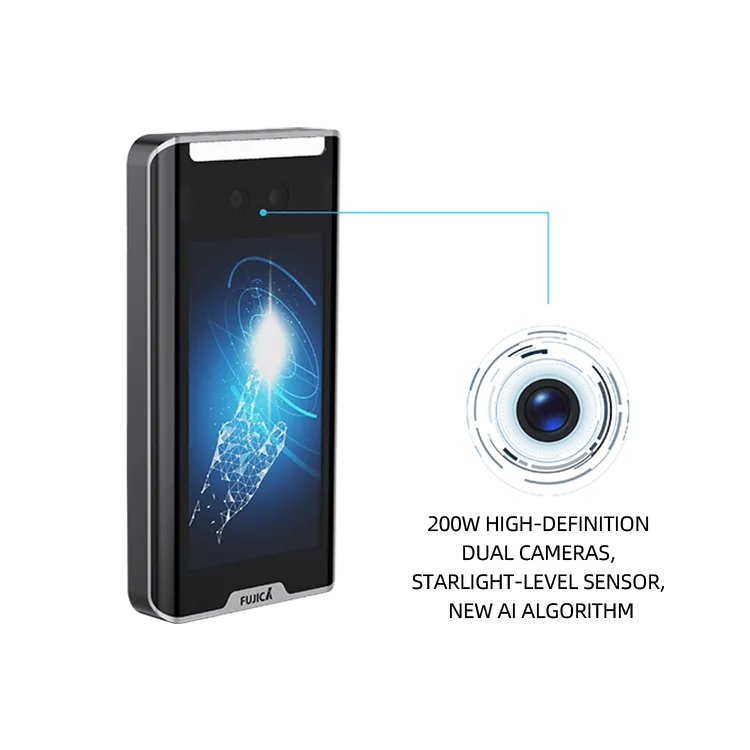

2 million high-definition dual cameras, starlight-level image sensors, high-performance ARM chips, and new AI algorithms ensure efficient and accurate face recognition as fast as 0.3s.
Super Recognition Performance
The integration of dual-light collaboration, automatic exposure, HDR ultra-wide dynamic range, and living body detection technologies gives the product strong environmental adaptability and anti-counterfeiting security capabilities.

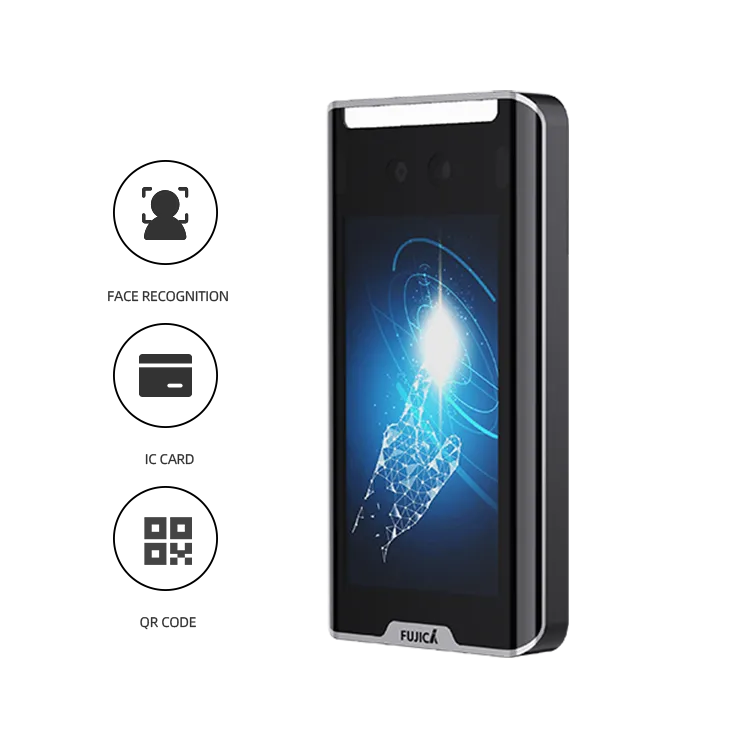

Multiple Authentication Methods
It supports face recognition/IC card/password/QR code and other authentication methods, and can be combined and configured to integrate with business scenarios to form a safe and complete access service solution.
Specifications
| Parameter | FJC-Z2319 |
|---|---|
| Body And Side Frame Material | 304 stainless steel |
| Gate Material | Stainless steel or acrylic |
| Top Cover Material | 304 stainless steel |
| Color | Stainless steel original color |
| Dimension (L*W*H) | 1,200*120*980mm |
| Lane Width | 800mm-1150mm |
| Gate Interception Height | 782mm |
| Gate Height From The Ground | 245mm |
| Motor | DC brushless motor |
| Power Supply | AC 220V/110V±10%, 50/60Hz |
| Device Power | Total power: 100W, motor power: 40W |
| Passing Speed | Normally closed: 20 persons/minute Normally opened: 40 persons/minute |
| Open-closing Speed | 0.55s-1.55s adjustable |
| Detection Method | Photoelectric switch |
| Number of Electric Eyes | 6 Pairs |
| Communication Interface | Serial port and multi-channel I/O interface |
| Communication | RS485 and TCP/IP |
| Noise | ≤65dB |
| Working Temperature | -25℃ to +70℃ |
| Working Humidity | ≤90%, no condensation |
| Protection Class | IP4X |
| Working Environment | Indoor |
